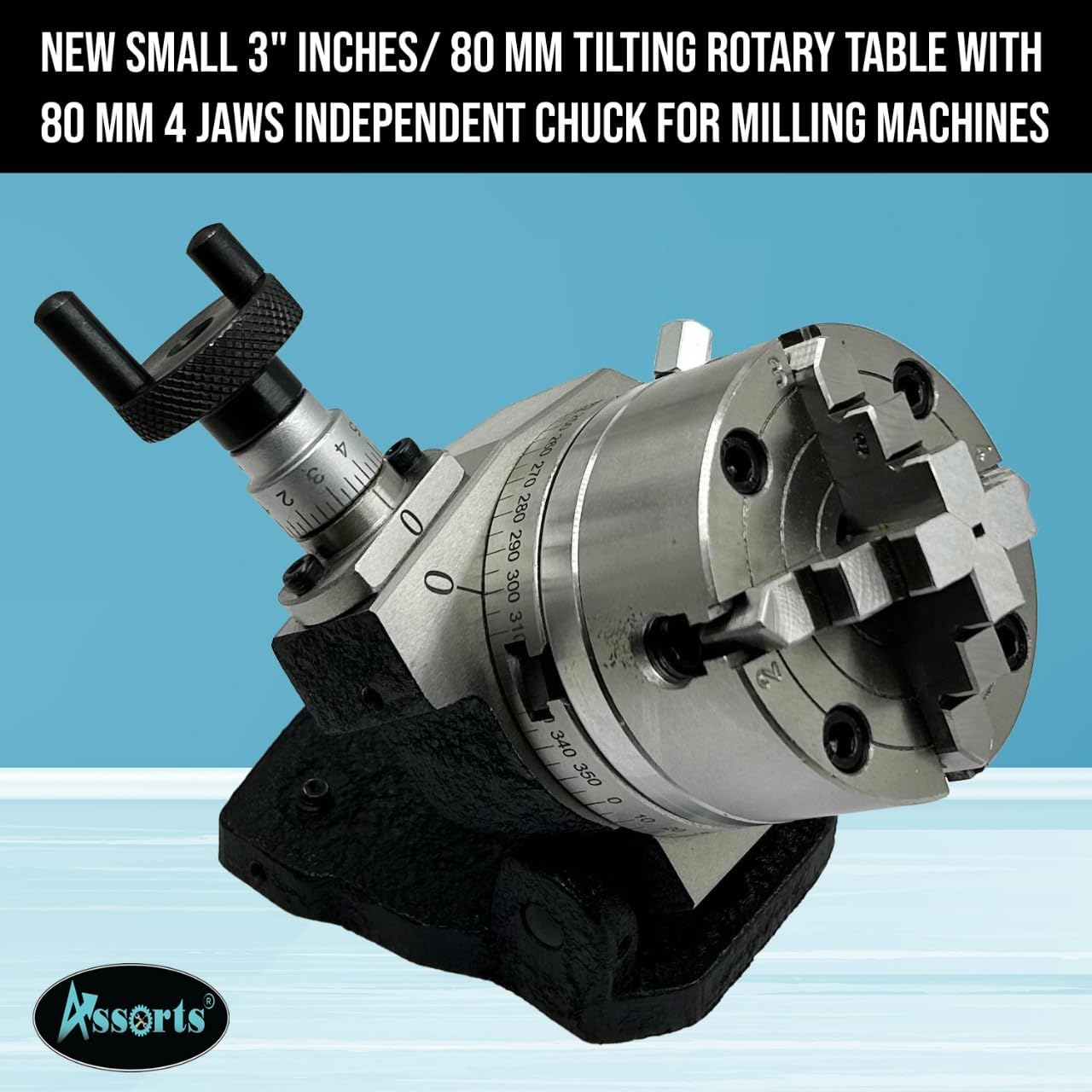

New Small 3" Inches/ 80 mm Tilting Rotary Table with 80 mm 4 Jaws Independent Chuck for Milling Machines
4.0 (23 items)
Limited Time SaleUS$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210164808 | Release Date | 2026/04/02 | List Price | US$36.00 | Model Number | 210164808 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
DESIGNED TO TILT BETWEEN 0- 90 DEGREES & CAN BE LOCKED AT ANY POSITION. TABLE DIAMETER - 3 INCHES /80 MM. HEIGHT - 47 MM WORM- GEAR RATIO - 36:1, WHICH BASICALLY MEANS THAT THE 1 ROTATION OF THE HANDLE SHALL ROTATE THE TABLE BY 10 DEGREES. CAN BE USED BOTH IN HORIZONTAL & VERTICAL POSITION. SUPPLIED WITH 80 MM CHUCK 4 JAWS INDEPENDENT WITH A BACK PLATE & T NUTS. BACK PLATE IS DRILLED IN A MANNER THAT I CAN FIT BOTH TO A 3 AS WELL 4 SLOTS ROTARY TABLE.
- Precision 3" /80 mm Tilting Rotary Table
- Designed to tilt between 0- 90 Degrees & can be locked at any position.
- Table Diameter - 3 Inches /80 mm. Height - 47 mm Worm- Gear Ratio - 36:1, which basically means that the 1 rotation of the handle shall rotate the table by 10 degrees
- Supplied with 80 mm Chuck 4 Jaws Independent with a Back Plate & T nuts. Back Plate is drilled in a manner that i can fit both to a 3 as well 4 slots Rotary table.
| Brand Name | ASSORTS |
|---|---|
| Unit Count | 1.0 Count |
| Handle Type | hand-tightened |
| Item Weight | 3 Kilograms |
| Manufacturer | Global Tools |
| Model Number | 342567 |
| Item Diameter | 80 Millimeters |
| Material Type | Alloy Steel |
| Item Type Name | ROTARY TABLE WITH CHUCK |
| Compatible Devices | Milling Machine |
| Included Components | Chuck Key |
| Manufacturer Part Number | MRT-3T80CI |
