N305 Industrial Motherboard NAS 8 Cores 8 Threads Low Power Processor 2x2.5G i226 Network M.2 Slot 6xSATA 2* M.2 NVMe 2280, 1* PCIe 3.0x4, 1* TF Slot, Dual 4K Display, 6* USB
4.5 (83 items)
Limited Time SaleUntil the end
00
32
36
US$185.99 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used US$124.00
Product details
| Management number | 209090808 | Release Date | 2026/03/29 | List Price | US$124.00 | Model Number | 209090808 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

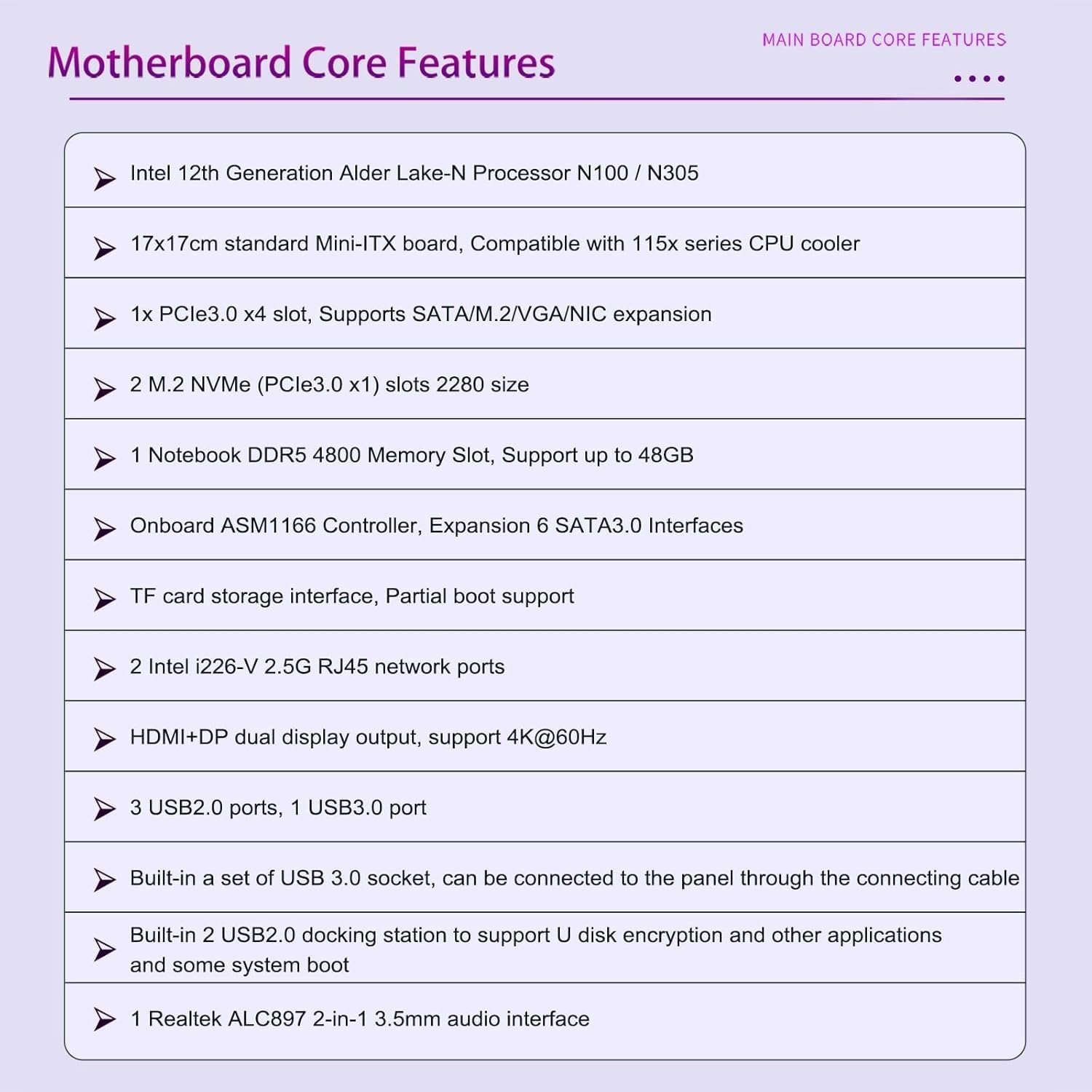

- 【Low power processor】Intel N305 8 Core Processor, 8 threads, up to 3.8GHz; 15W TDP, 6M Cache, up to 3.8 GHz, with Intel UHD Graphics.
- 【High speed network card】This NAS motherboard has 2* i226 2.5GbE ports to deliver a secure, stable and fast network connection for professional network security firewall appliance and multimedia use.

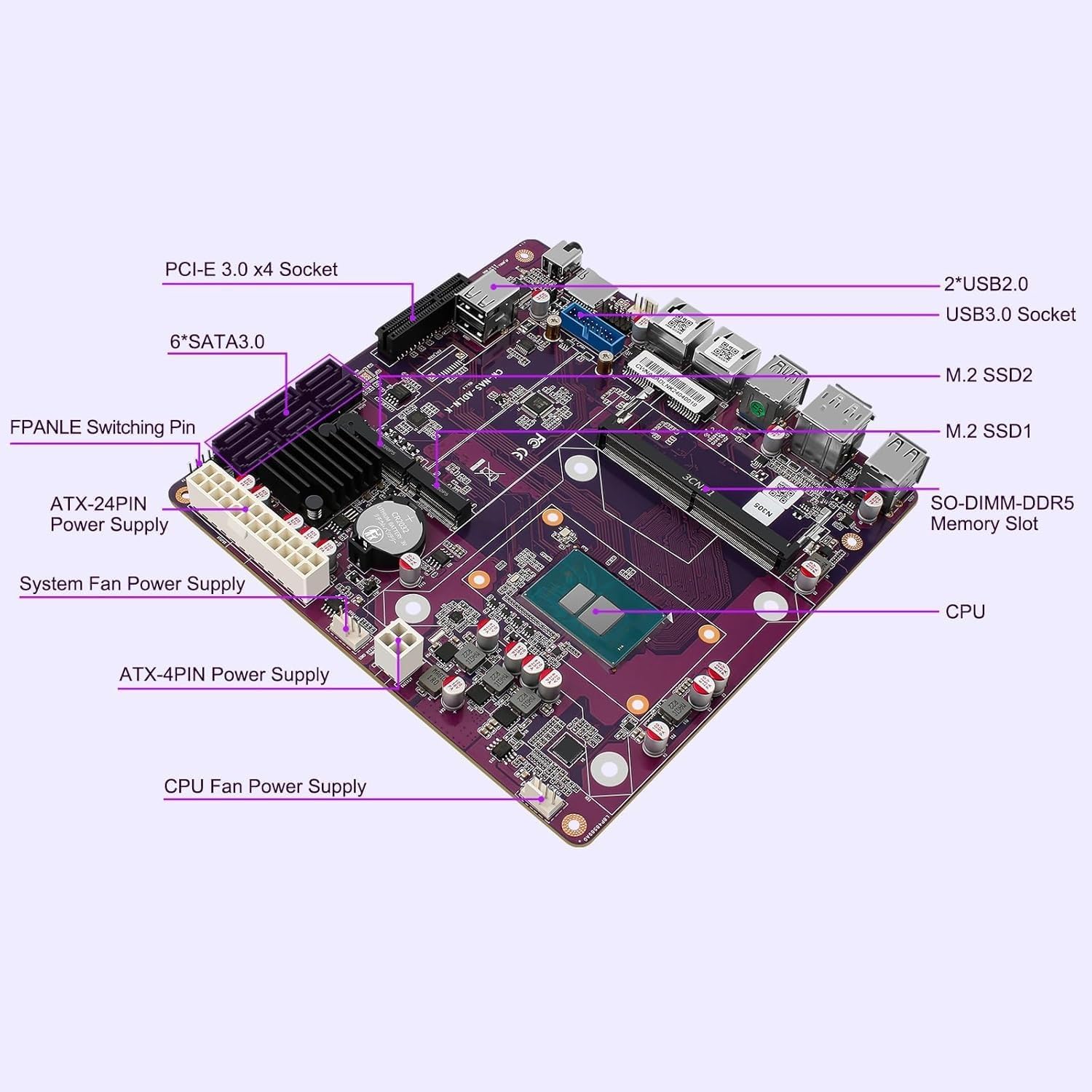

- 【Industrial NAS Motherboard 】Mini-1TX size: 17.0 cm x 17.0 cm,High-density moisture-proof fiber circuit board Ultrafast Connectivity--1* USB3.0, 1* Type-C(USB2.0), 2* USB2.0, 2* built-in USB on board for for USB booting of the NAS system. 1* HDMI2.1 and 1* DP1.4b to support dual 4K@60Hz display.
- 【 Storage and Memory】1* DDR5 slots, compatible with 4800/5200/5600MHz (non-ECC), RAM supports up to 32GB, 6* SATA3.0 with 6Gbps (SATA1 is native, SATA2-SATA6 is extended by the JMB585 chip) and 2* M.2 NVMe 2280 PCIE3.0x1, stable and ultra-fast transfer speed.Dual 4K Display: This mini-ITX board has HDMI2.0 and DP1.4 ports at 4K@60Hz
- NOTE: The motherboard requires both 24PIN + 4PIN power connections to power up. It will take a few minutes for the motherboard to read the memory information when you first turn on it, please be patient. If you need to go to the BIOS page, keep pressing "DEL" while booting up
| Brand | HKUXZR |
|---|---|
| USB 20 | 2 |
| Platform | Linux, Windows |
| CPU Model | Celeron N |
| Model Name | HKUXZR N305 |
| Chipset Type | Intel B360 |
| Manufacturer | HKUXZR |
| Model Number | RM HKUXZR N305 |
| Number of Ports | 35 |
| Total Usb Ports | 3 |
| Processor Socket | LGA 1264 |
| Total PCIe Ports | 1 |
| Total SATA Ports | 6 |
| Compatible Devices | Server, Network Security Appliance |
| Memory Clock Speed | 4800 GHz |
| Warranty Description | One year warranty |
| Compatible Processors | Intel Celeron |
| RAM Memory Technology | DDR5 |
| Memory Slots Available | 1 |
| Graphics Card Interface | Integrated |
| Memory Storage Capacity | 64 GB |
| Ram Memory Maximum Size | 32 GB |
| Number of Ethernet Ports | 2 |
| Main Power Connector Type | 24-Pin+4Pin |
| Total Number of HDMI Ports | 1 |
| System Bus Standard Supported | SATA 3 |
