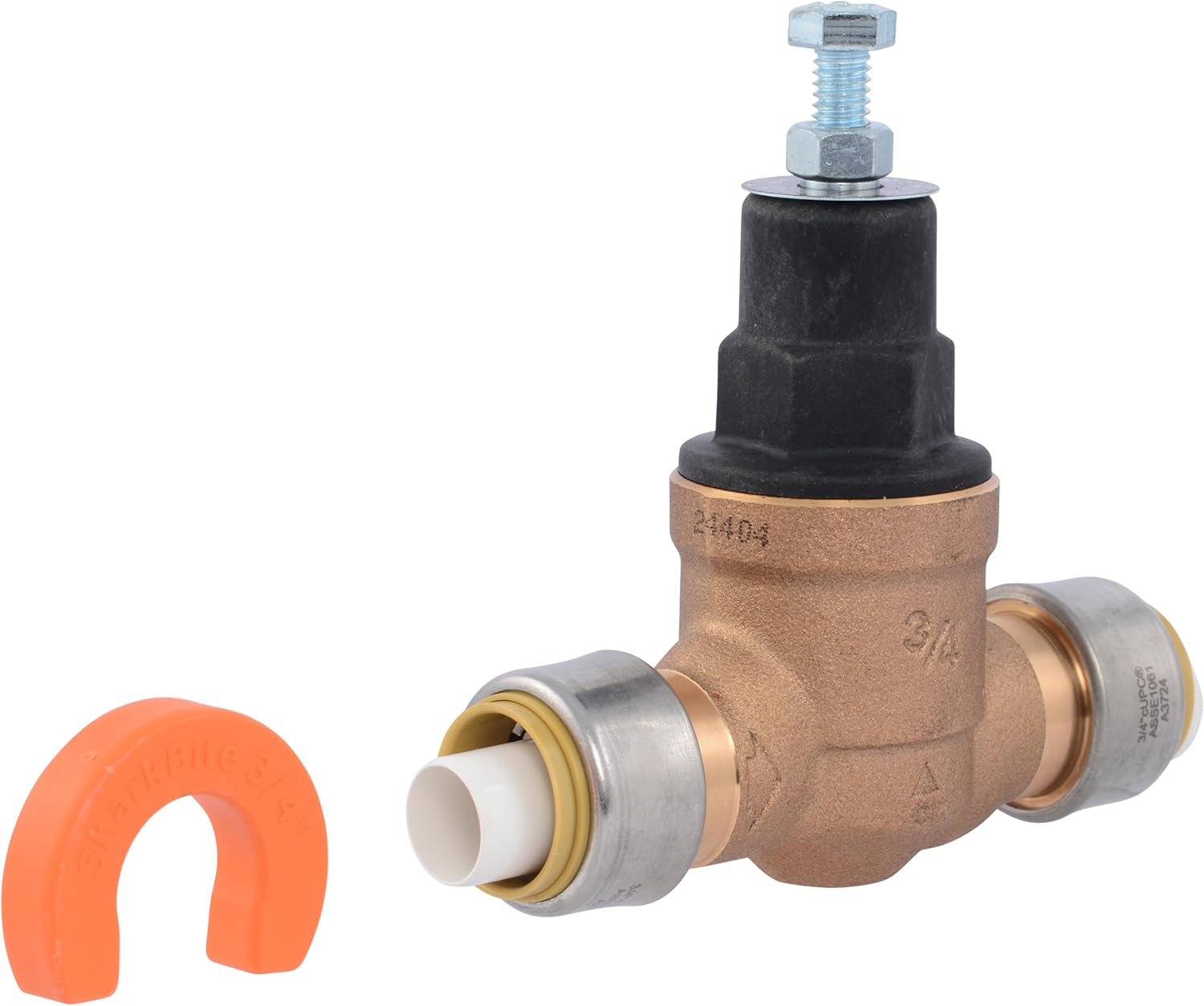

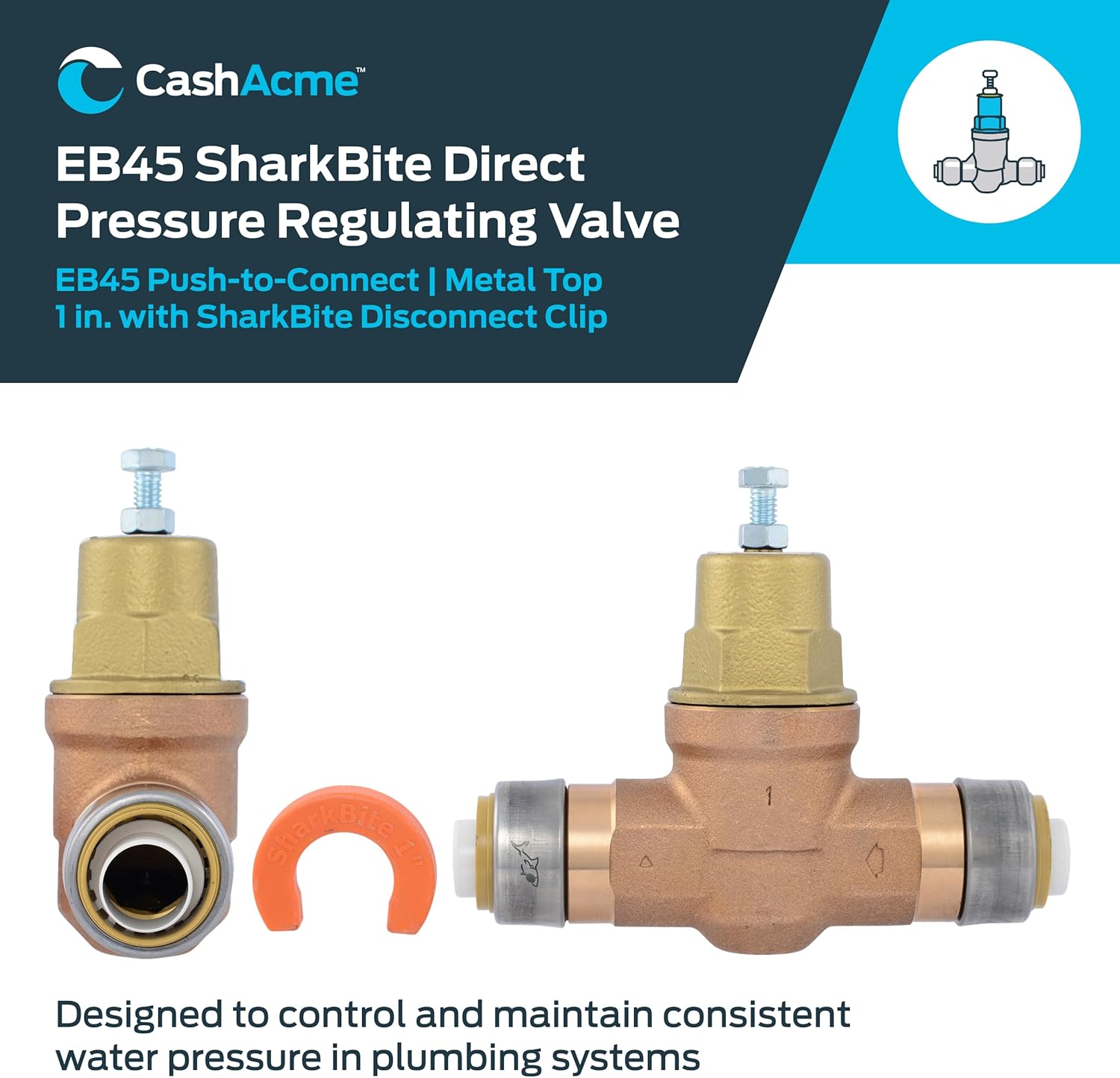

Cash Acme EB45 Pressure Regulating Valve with Disconnect Clip, Direct, 1 Inch Push to Connect, Metal Top, 60 PSI, Compatible with SharkBite, PVA20M-DSB-60
4.0 (147 items)
Limited Time SaleUS$61.20 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211094832 | Release Date | 2026/04/04 | List Price | US$40.80 | Model Number | 211094832 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Keep water pressure regulated in any commercial or residential setting with this direct pressure regulating valve. Designed to prevent surges and maintain consistent flow, this water pressure regulator features a tamper-resistant EB45 design that locks in the desired pressure. The push-to-connect mechanism allows for quick, tool-free installation—just insert the pipe, and the stainless steel teeth grip tightly while the O-ring compresses for a secured seal. Easily removable with the included SharkBite disconnect clip, this regulating valve is made from lead-free and durable brass. Rated to 60 PSI and adjustable from 10 to 70 PSI, these regulating valves support both hot and cold water up to 180 degrees F.
- CASH ACME WATER PRESSURE REGULATOR: The Cash Acme Direct Pressure Regulating Valve (PRV)is designed to reduce incoming water pressure as well as prevent pressure surges to protect plumbing components. The valve offers simplicity and maintenance benefits of a cartridge-based valve while preserving the construction of a traditional regulator with a separate spring chamber and adjusting screw
- DESIGN: This compact, inline 1 in. push fit direct SharkBite pressure regulating valve features EB45’s tamper-resistant design that lets you lock in the desired system pressure. This protects against accidental setting adjustments and ensures water stays at a safe pressure
- MATERIAL: This regulating valve is made from brass, stainless steel and durable metallic components to withstand corrosion, compliant with NSF/ANSI 372 for safe use in potable water systems, meeting all drinking water regulations
- EASY TO USE: This water pressure-reducing valve features a push-to-connect design for quick, tool-free installation. Just insert the pipe, and the stainless steel teeth grip tightly while the O-ring compresses for a secure, leak-free seal. Easily disassemble using SharkBite disconnect clip (included)

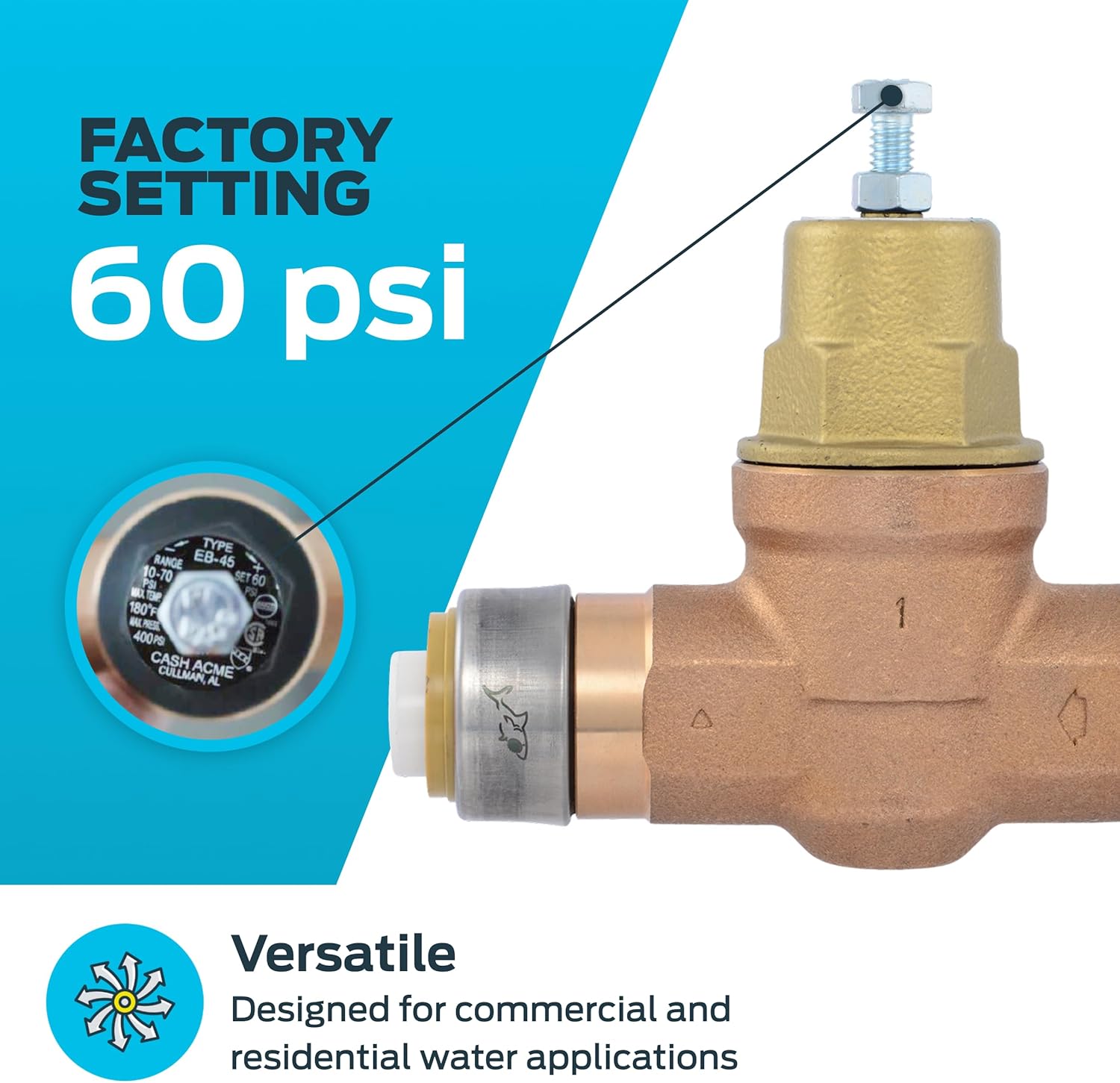

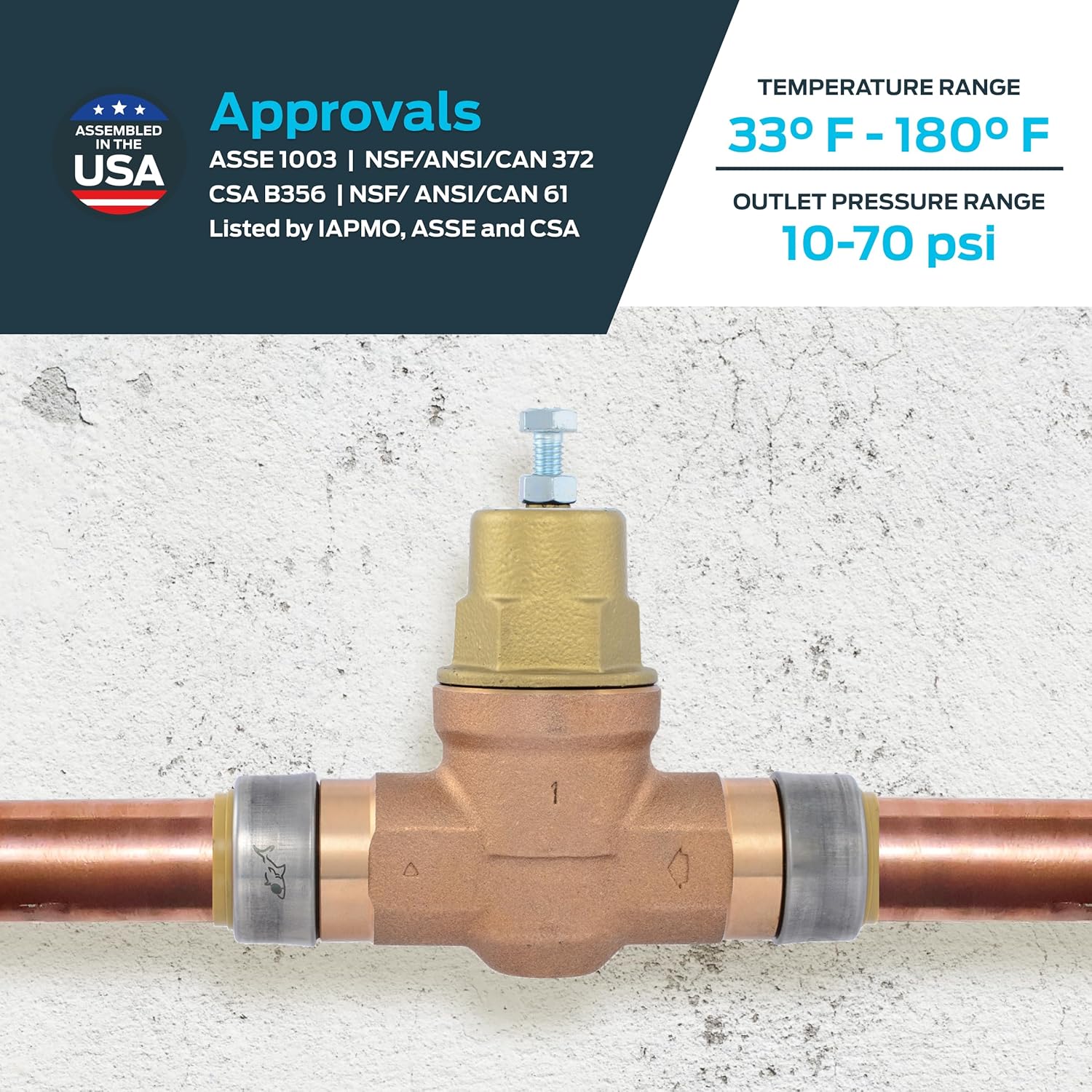

- RATING: The water pressure reducer valve is rated to 60 PSI and is easily adjustable between 10 to 70 PSI; Suited for either cold or hot (to 180 degrees F) water service; Assembled in the USA
| UPC | 697285110847 |
|---|---|
| Size | 1 in., 60 PSI |
| Brand Name | Cash Acme |
| Unit Count | 1.0 Count |
| Manufacturer | Reliance Worldwide Corporation |
| Model Number | PVA20M-DSB-60 |
| Material Type | Brass |
| Connector Type | Push-fit |
| Item Type Name | EB-45 SharkBite Direct |
| Exterior Finish | Brass |
| Item Dimensions | 7.15 x 5.61 x 2.76 inches |
| Number of Ports | 2 |
| Maximum Pressure | 60 Pound per Square Inch |
| Specification Met | NSF |
| Included Components | 1 in. Direct Push-to-Connect EB45 Pressure Regulating Valve Metal Top |
| Inlet Connection Size | 1 Inches |
| Inlet Connection Type | Push to Connect |
| Outlet Connection Size | 1 Inches |
| Outlet Connection Type | Push to Connect |
