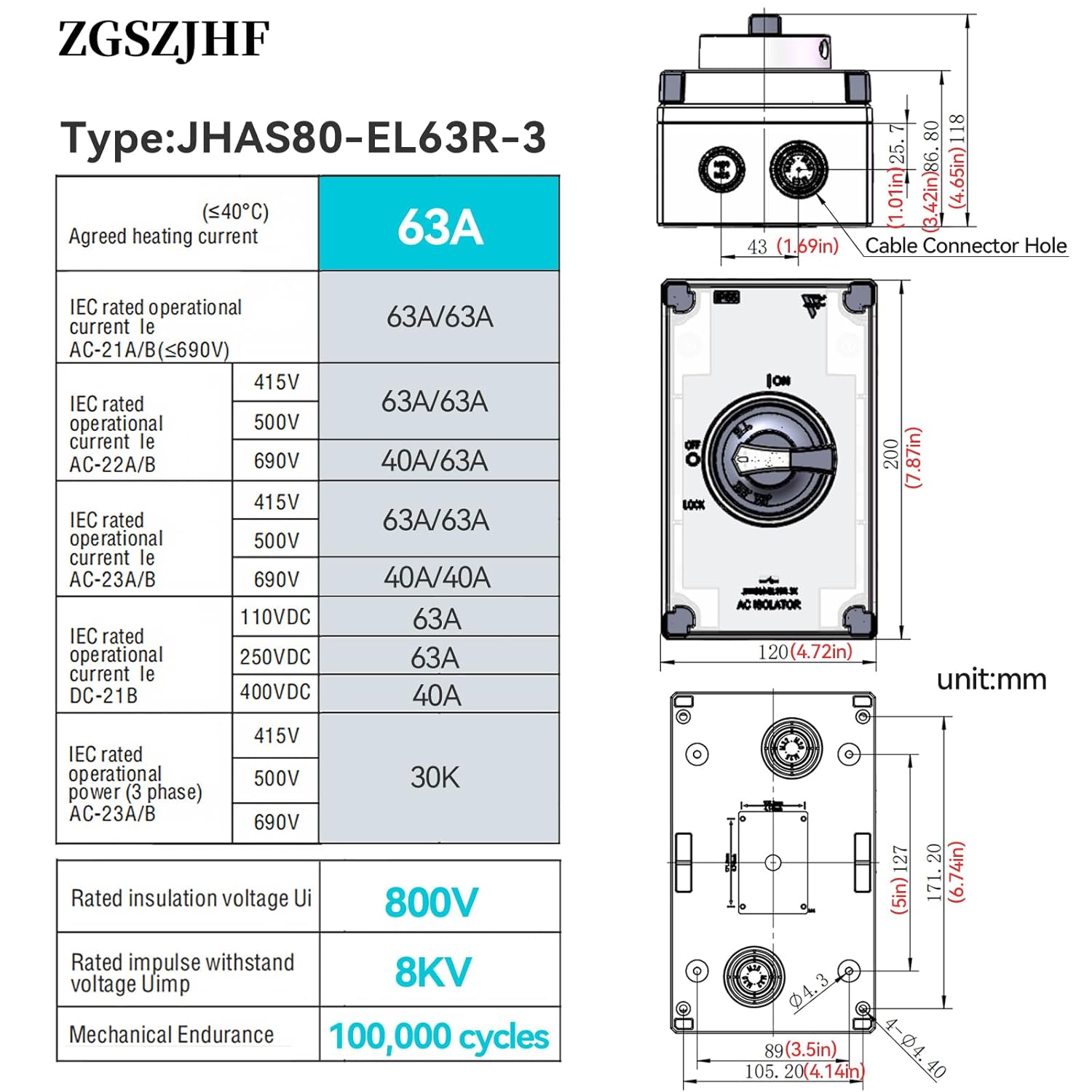

UL-Listed 63Amp AC Disconnect Switch 3-Pole 800V AC; PV Isolation On Off; IP66 Waterproof 3 Phase Disconnect Box Outdoor Breaker 3-Ways
Product details
| Management number | 226426738 | Release Date | 2026/05/09 | List Price | US$21.20 | Model Number | 226426738 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【UL Listed | 63A 3-Pole Power Disconnect Switch】63 Amp 800V AC Voltage & 8KV Uimp. UL Certificate No. : UL-US-2571359-0). UL/ TUV/CE/RoHS Listed
- 【Outdoor disconnect switch】 Isolation switch is widely used in wide range of applications, including residential, commercial, and industrial settings. 32A Disconnect Switch can effectively solve the problems of emergency disconnection, safety disconnection, machine control, motor control.
- 【IP66 waterproof】 Waterproof disconnect switch box for indoor / outdoor use. panel disconnect switch can withstand various weather conditions. Its robust onstruction also protects against dust and other outdoor elements. Sturdy and safety, UV RESISTANCE,durable and reliable, weather resistant and rainproof.
- 【60 Amp Disconnect Switch】The rotating handle can be used for hanging locks. The factory status switch is in the OFF position. After wiring, please point the knob to the OFF position so that the box cover can be easily closed.

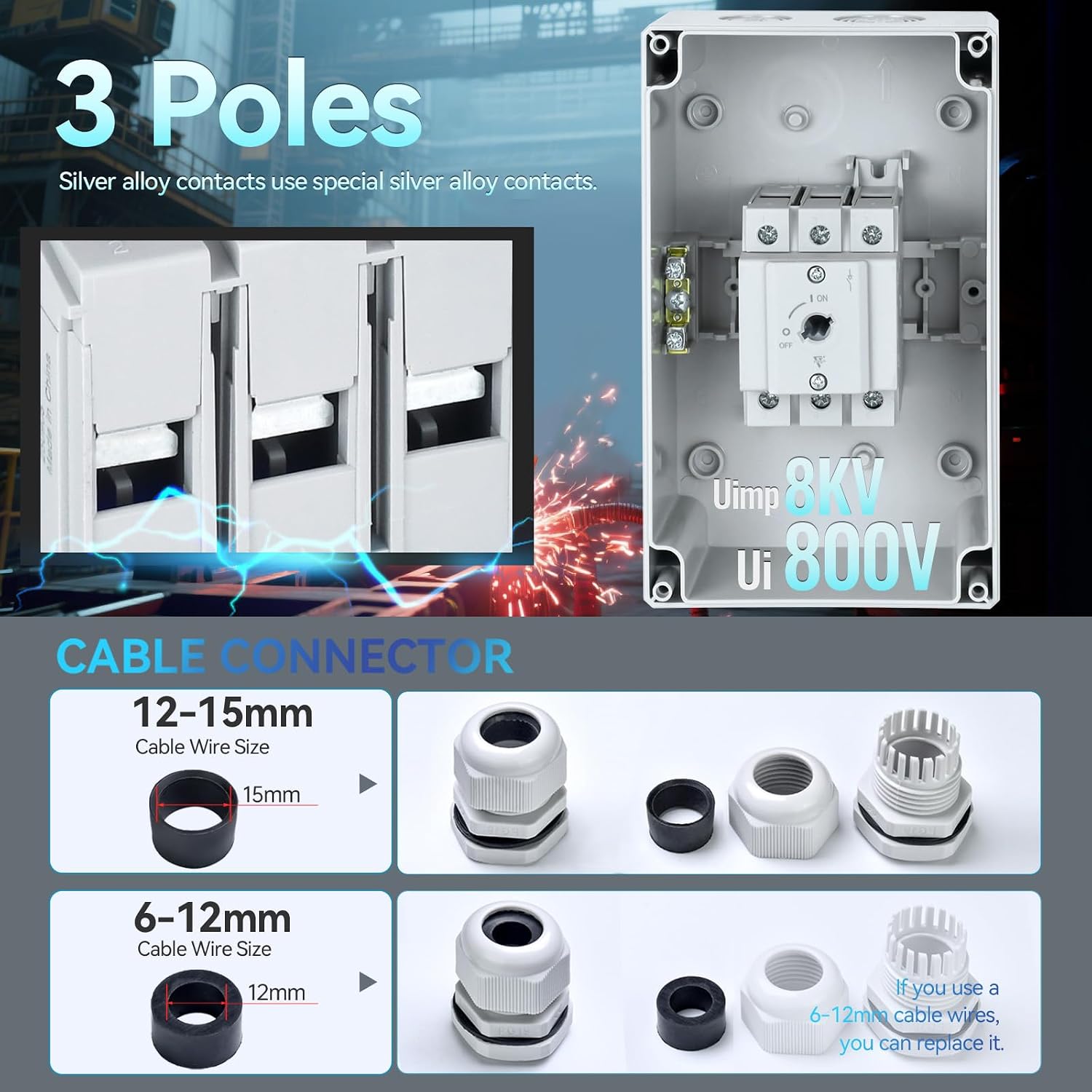

- 【Package Include】1 x 3 phase disconnect switch (63A 3P) ; 6x Screw; 4x cabie connectors.
| ASIN | B0FT6TK24L |
|---|---|
| Model | KD80-EL63R-3 |
| Terminal | Screw |
| Brand Name | ZGSZJHF |
| Unit Count | 1.0 Count |
| Item Weight | 1.69 Pounds |
| Part Number | KD80-EL63R-3 |
| Switch Type | Rotary |
| Circuit Type | 3-way |
| Contact Type | Normally Open |
| Control Type | Rotary |
| Manufacturer | ZGSZJHF |
| Actuator Type | Disconnect Switch |
| Material Type | Polycarbonate |
| Mounting Type | Panel Mount |
| Connector Type | Cable Connectors |
| Current Rating | 63 Amps |
| Operation Mode | ON-OFF |
| Controller Type | Disconnect Switch |
| Item Dimensions | 7.87 x 4.72 x 4.65 inches |
| Number of Items | 1 |
| Contact Material | Silver |
| Operating Voltage | 800 Volts (AC) |
| Specification Met | CE, RoHS, TUV, UL |
| Compatible Devices | Devices requiring 800V AC and 63A or less |
| Included Components | 1 x Disconnectors Switch (63A) ; 6x Screw; 4x cabie connectors. |
| Number of Positions | 2 |
| Warranty Description | If you have any question, please be free to contact us. |
| Upper Temperature Rating | 55 Degrees Celsius |
| Compatible with Vehicle Type | Any Vehicle |
| International Protection Rating | IP66 |
