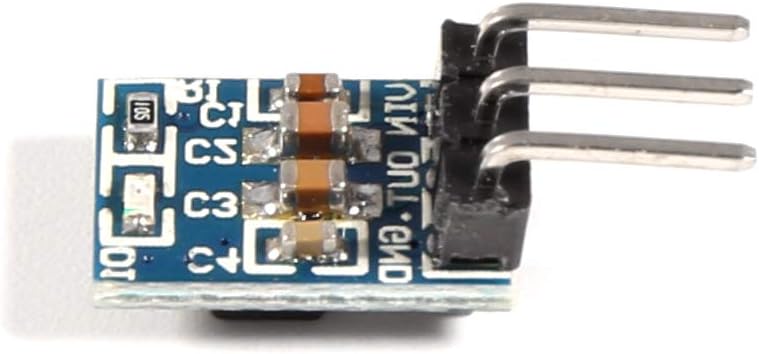

Dorhea 7 Pack 3.3V DC-DC Buck Converter 3 Pins AMS1117-3.3V DC 4.75V-12V to 3.3V Voltage Regulator Step Down Power Supply 800mA Buck Module

Features: Output current: 800 mAh (load current may not exceed 800 mAh) Output current: 0.8A (max) Line adjustment rate: 0.2% (max) Load regulation: 0.4% (max) Package Type: SOT-223 Operating junction temperature range: -40 to 125°C Welding temperature (25 seconds): 265°C Storage temperature: - 65~150°C Output voltage: 3.3V Line adjustment (maximum): 10mV (VIN :4.75V to 12V) Load regulation (maximum): 15mV (VIN = 5V, IOUT: 0 to 1A) Voltage difference (maximum): 1.3V Current limit: 900 ~ 1500mA Quiescent Current (Max): 10mA Ripple suppression (minimum): 60dB Applications: High Performance Linear Regulator Post Regulator for Replacement of Accessories 5V to 3.3V Linear Regulator Charger Active SCSI Terminators and Power Management for Notebook Package included: 7 x AMS1117-3.3 module Note: 1.Please do not exceed operating voltage, or it will be damaged easily 2.Exceeding the maximum allowable power consumption will result in excessive chip temperature 3.Can not reverse polarity , or it will result in short circuit

• AMS1117-3.3 is a positive voltage regulator step down power supply module, support DC 4.75-12V input and 3.3V fixed voltage and 0.8A current output.
• The voltage regulator converter module is suitable for electronic devices, with the design of 3 pins, this buck converter is easy to connect your MCU development and provide constant power supply, which suitable for electronic devices such as SCM project design needs 3.3V power supply.
• Applicable for high-efficiency linear regulator Published Active Power Regulator Battery Charger Active instrument.
• Applications: MSP430 Development Board; 3.3V Low power consumption MCU; FPGA/CPLD PLD Programmable Logic Systems; ARM7 ARM9 ARM11 STM32; etc.
• AMS1117 overheat shutdown circuit provides overload and over-temperature protection. AMS1117-3.3V Buck Converter soldering kit only supports 3.3V,800mA output, So the load current can not exceed 800mA.
